QTRACE

Flow measurement according to
the salt dilution method, for watercourses with strong turbulence or
missing measurement profile.

Advantages and functions

• Salt as tracer material.
• Measurement results immediately readable on the data logger.
• Export of measurement results to PC software WinQTRACE.
• Rechargeable battery.
• Data logger can also be used to measure temperature and conductivity.
• Replaceable conductivity sensor.

Applications

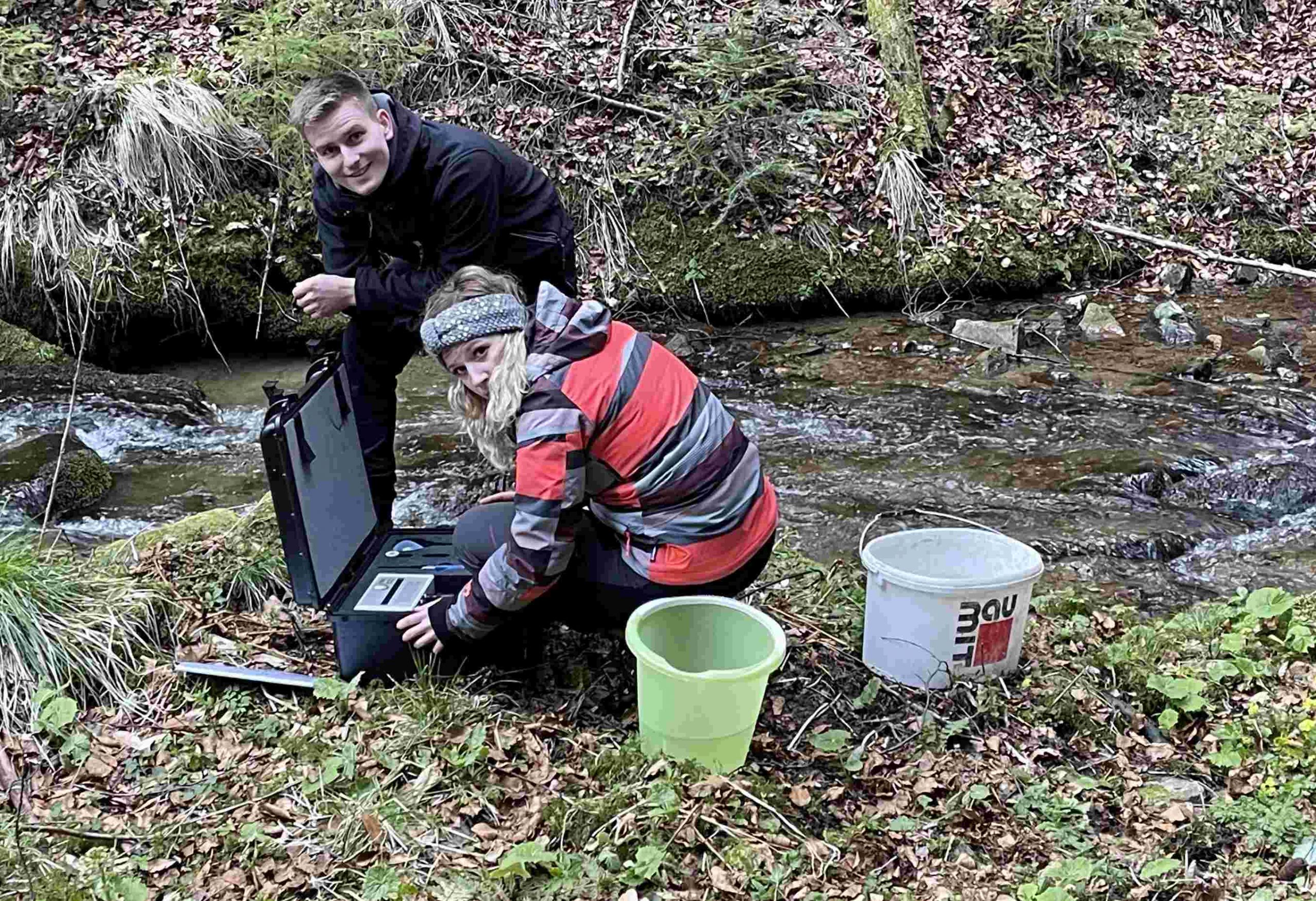

This measurement method is applied in watercourses where wing
measurement is not possible due to strong turbulence or lack of
measurement profile. A typical application for the QTRACE system is
therefore discharge measurement in alpine regions.

Technical data

Dimensions (data logger) 200 x 120 x 85mm
Housing (data logger) ABS plastic
Protection class IP65
Operating temperature -35°C to +60°C
Power supply internal rechargeable battery
Measurement channels 2, conductivity and temperature
Measuring range (temperature) -5°C to 45°C
Measuring range (conductivity) 0µS/cm to 1400µS/cm
Interfaces RS232 with USB adapterFlow measurement
according to the salt dilution method, for watercourses with strong
turbulence or missing measurement profile.
