Dipmeter Solinst 101
Dipmeter for groundwater measurements.

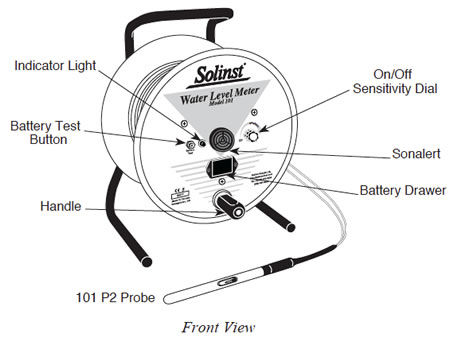

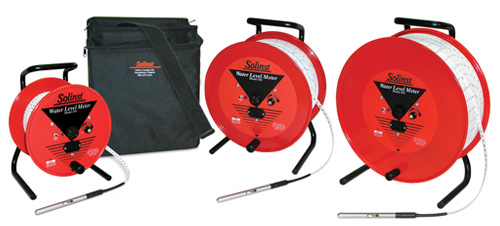

The Model 101 is ideal for water level measurement at groundwater monitoring wells. There are 2 variants of this dipmeter. The P7 version with a waterproof stainless steel probe attached to a durable plastic (PVDF) measuring tape. This tape measure can be supplied in lengths up to 1500m. Alternatively, there is the P2 version, which has a stainless steel probe with a measuring point shifted up from the tip. This makes it more suitable for fluctuating water levels. For the P2 version, a polyethylene measuring tape is available in lengths up to 300m. Furthermore, the tape measure offers laser marking with millimeter graduation. The groundwater level can be read on the measuring tape, as soon as the probe has made contact with the water surface a buzzer sounds and an LED on the meter lights up.
